Features

• Support 4 channel AHD 1080P input and HD 1080P output

• 4x1080P, 4x720P, 4xD1 and 4 mixed-resolution recording,  with 15 seconds pre-recording function

• Start trigger recording, timer trigger recording, motion trigger recording, G-force trigger recording, over-speeding trigger recording, 8-channel customized alarm input trigger recording, remote control trigger recording

• 3G/4G/WIFI/GPS tracking technology,platform-side CMS server, IOS, Android and windows Client network client, can achieve real remotely monitoring

• WIFI support STATION and AP mode; AP mode can support that mobile directly connect to devices, and is easy for preview and configuration at mobile terminal

• Alarm recording, alarm information, log information, GPS trajectory, real-time videos and pictures remotely automatic uploading, remotely intelligent data analysis and management

• Various storage types: 2TB HDD+SD card * 1( max 128GB) can be all supported

• Support dual stream, sub-stream backup and network transmission

• Supports Gsensor acceleration sensor,GPS

• Support  infrared remote control

• Well protected by Super-capacitor

• Specification

•


• System	Operating system	Linux

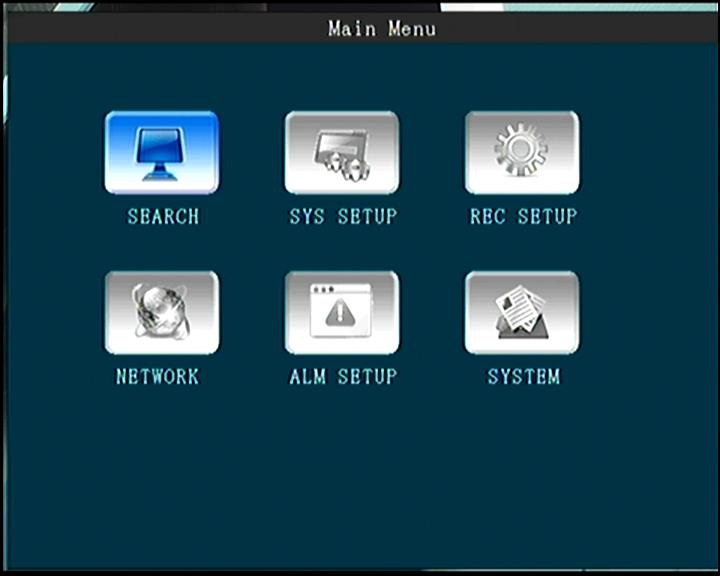

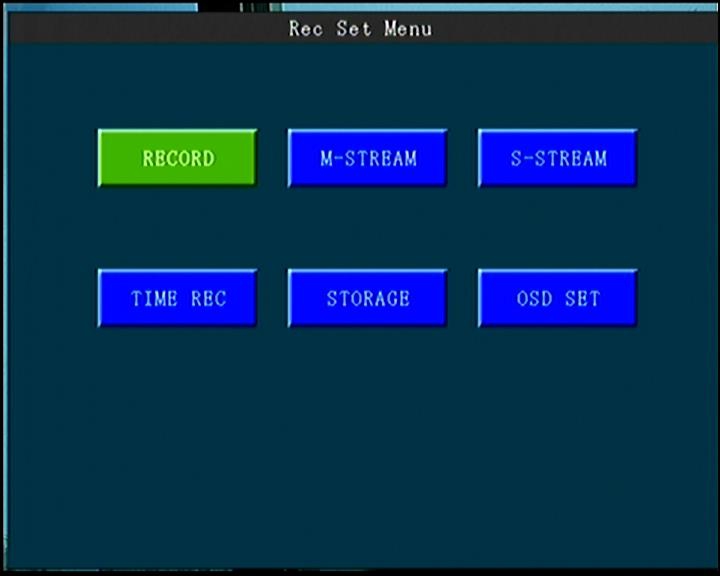

  	Operating interface	Graphical menu operation interface(OSD)
  	Video permission	Administrator & user setting
  Video	Video input	Max 4ch 1080P analog high definition
  	CVBS output	1CH 6pin aviation connector output PAL/NSTC
  	HD output	1CH 1080P
  	Video display	1 or 4 CH
  	Video standard	PAL: 25FPS, NTSC: 30FPS
  	Compression	H.264 main profile
  	Total resources	1080P  PAL: 100FPS NTSC: 120FPS
  Audio	Audio input	4 channels
  	Audio output	2 channel
  	Record format	Synchronized video & audio recording
  	Audio compression	ADPCM
  Digital processing & storage	Image resolution	4*1080P(1920*1080)
  	Image quality	1~8 level adjustable
  	Video bit rate	128kbps~6Mbps/channel
  	Storage	56~2700MB/(channel*hour)
  	Playback resolution	4*1080P (encoding & decoding at the same time)
  	Audio bit rate	32kbps
  	Storage	SD card * 4, max 128GB
  Alarm	Alarm input	8 channels
  	Alarm output	2 channels
  	Motion detection	High/middle/low sensitivity adjustable
  Interface for communication	IR	1 channel
  	RS232	1 channel
  	RS485	1 channel
  	RJ45	1 channel
  	USB3.0	1 channel for file backup and firmware upgrade
  Wireless	3G/4G	HSPDA/EVDO/FDD-LTE/TDD-LTE module optional
  	WIFI	optional
  	WIFI hotspot/AP	optional
  GPS	Internal GPS/GLONASS module, coordinate/speed  can be encoded in video stream and upload to server by wireless communication
  G-Sensor/Gyroscope	G-Sensor
  Software	Windows client	Available
  	iOS client	Available
  	Android client	Available
  	Web portal	Available
  Electrical spec	Power supply &      consumption	DC 10~32V, less than 15w(without camera)
  	Operating temp. & humidity	-20～70 degree/ <80%
  	Clock	Built-in clock, Calendar
  	Super Capacitor	Available
  	Video input impedance	75ohm
  	Video output voltage	1Vpp CVBS output

•


•


Vehicle management is  simple

With Mobile phone, Tablet or Computer in hand,

you WOULD be able to remotely manage and dispatch all kinds of vehicles

Support PC Windows Client, mobile IOS and Android APP.

Users can use the computer or mobile phone to remotely monitor vehicles.

It also supports real-time positioning, historical trajectory,

file download and playback, electronic fence and other special features
