A PILLAR MONITOR

Product features:

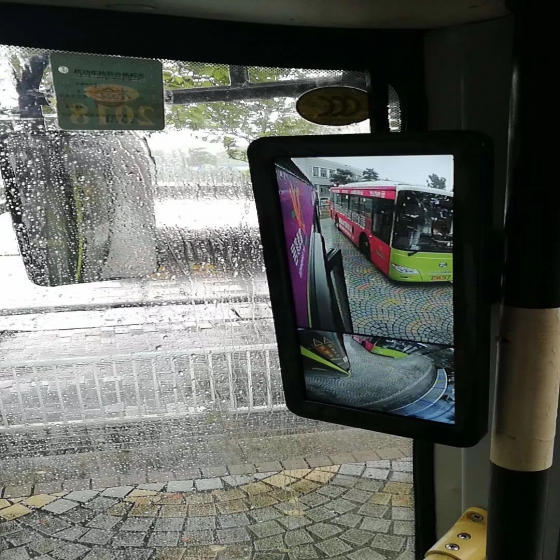

Electronic Mirror Monitor System! It is installed inside the vehicle and can provide high definition clear images even in harsh weather conditions like rain, snow, fog, or in the dark.

Details

  • Support 2CH x 720P camera input

  • Support 720P/30fps video recording

  • Support up to 128G SD Card

  • Support automatic backlight adjustment

  • Support automatic camera identification once the monitor is powered on. (The automatic identification will not work if the camera is connected after the monitor is powered on)

  • Resolution: 1920*3 (RGB)*720, IPS

  • Brightness: 1000 cd/m2

  • Contrast: 1000:1

  • IP69K camera night vision distance: 5m (16.40ft)

  • Power Input: 10-32V

  • Shockproof Rating: ISO 16750-3 (6.3G Max)

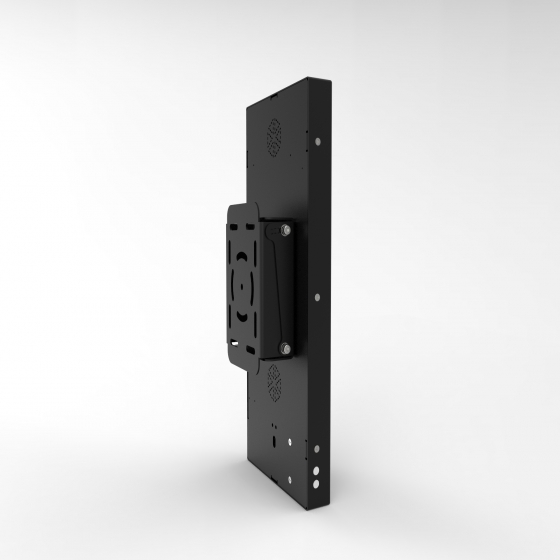

12.3 inch Split View Rearview Electronic Mirror Monitor

Operating Voltage

10-32V (2.5A Max)

Resolution

1920*3 (RGB)*720, IPS

Viewing Angle

U: 85°/D: 85°, R/L: 85°/85°

Number of Cameras & Video Formats

1000 cd/m2

Contrast

1000: 1

Input Channels

2



720P IP69K Waterproof Cameras

Image Sensor

 CMOS

FPS

25fps / 30fps

Effective Pixels

<span color:black;"="">1280 (H)  x 960(V)/ 720 (V)

Pixel Size

3.75 μm × 3.75μm

Scanning System

Progressive Scanning

Synchronizing System

Inter-sync

Resolution

720P, 960p

Video Output

1.0Vp-p, 75Ohm

Gamma

0.45
